End of an Era - the passing of Little Devil

It all started innocently enough at RMIHR 1998 with John and Pansy Comer. By August of 1998 I was building a racer.

I started with two Scouts donated from Senior Bob Bradley - one that was rolled, one that was Blair Howze's worn-out racer.

I spent 9 months preparing the two Scouts - dismantling and disposing of one, getting the other ready, and in the span of a week mostly put it together.

On July 4th, 1999 I took Little Devil to Cascade, Montana for the first race.

I pulled in, flat-towing, and handed Blair the front driveshaft and a box of U-joints that needed installed.

http://www.tmcom.com/~tsm1/scout/jpg/racing/july_4_1999/Image2sm.jpg
http://www.tmcom.com/~tsm1/scout/jpg/racing/july_4_1999/pic2sm.jpg

I had a used 304, rebuilt 727, full width 4.88 Dana 44s, a rollcage, a plastic bucket seat, a flex-fan, and 235/75-15 snow tires.
<!--break-->
Blair even won while driving.

http://www.tmcom.com/~tsm1/scout/jpg/racing/july_4_1999/Image38sm.jpg
http://www.tmcom.com/~tsm1/scout/jpg/racing/july_4_1999/Image40sm.jpg

http://www.tmcom.com/~tsm1/scout/jpg/racing/july_4_1999/Image71sm.jpg

No working gauges and the flex fan combined to kill that 304 that weekend. A second junkyard motor died in Feb of 2000 at Winter Baja. Memorial Day 2000 we were installing a new Gryphin built "304C" in Denver and racing in Brighton over the weekend. We jetted the 500cfm Holley a few times over the day - with each pass down the dragstrip, the rings would seat more.

I started out flat-towing the Scout, moved up to Comer's old trailer and a Travelall, then my Travelette, and now my Travelette pulling a gooseneck pulling my camper.

I have rebuilt the engine 3 or 4 times now, and the 727 has been destroyed a few. Way too many Dana 20s after going reverse shackle.. one front axle broken in half.. one body, various mounts. I went from 4 shocks to having 4 remote reservoir shocks on the front alone, along with air bumps. I went from shackle-forward to reverse-shackle. I added a ladder bar, and so on.

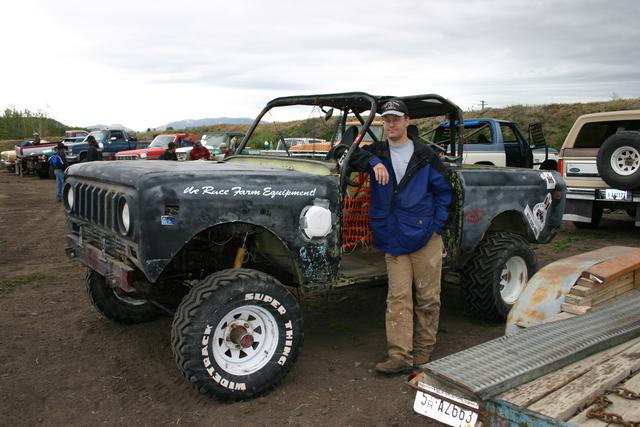

I did mud-bogs, mud-drags (here in 9/2004), baja races, drag races, obstacle races.

http://www.tmcom.com/~tsm1/PlainGallery/2004MudDrags912Bozeman/img_0026.sized.jpg

In 2005, rolled it.

http://www.tmcom.com/~tsm1/PlainGallery/DevilRolloverRepairsFeb2005/dcp_0006.sized.jpg

And thus I rebodied and repainted.

http://www.tmcom.com/~tsm1/PlainGallery/2005LittleDevil05FinalRepairandPrep/img_2387.sized.jpg

I also had it off the frame once to fix the frame.

In March of 2008, in Powell, Wyoming my oldest daughter got to represent the race team and go for a ride.

http://www.tmcom.com/~tsm1/gallery2/d/42255-4/img_3937.jpg
http://www.tmcom.com/~tsm1/gallery2/d/41973-4/img_3843.jpg

To this day, I'm not allowed to move it without her strapped in. Even if I'm just loading or unloading.

Unfortunately, in October 2010 I found myself not keeping up with the race leaders, and tried to take a turn too fast in Acton, resulting in "catching an edge" which lead to "2.5 rolls"

http://www.tmcom.com/~tsm1/gallery2/d/89763-1/2010-10-03_14-32-26_407.jpg
http://www.tmcom.com/~tsm1/gallery2/d/89773-1/2010-10-03_14-36-49_653.jpg
http://www.tmcom.com/~tsm1/gallery2/d/90193-1/IMG_6766.JPG

A bobcat was used to load it.

http://www.tmcom.com/~tsm1/gallery2/d/90232-1/IMG_6779.JPG

A lot of stuff was broken.

Broken frame.
http://www.tmcom.com/~tsm1/gallery2/d/90359-4/536367.jpg
Radiator mount.
http://www.tmcom.com/~tsm1/gallery2/d/90408-4/978579.jpg
Body mounts.
http://www.tmcom.com/~tsm1/gallery2/d/90386-1/126894.jpg
http://www.tmcom.com/~tsm1/gallery2/d/90405-1/383028.jpg
http://www.tmcom.com/~tsm1/gallery2/d/90395-1/914444.jpg

A chunk of rotor was MIA.
http://www.tmcom.com/~tsm1/gallery2/d/90379-4/652692.jpg

And some body parts.
http://www.tmcom.com/~tsm1/gallery2/d/90401-4/197056.jpg

Meanwhile, Robert Searles of Montana GSE and Damian of D&C Extreme had been working on a new replacement chassis for me since before my second daughter was born.

I sent it off to Sandblast this Spring after deciding it was time to retire Little Devil and focus on the new one.

So, Labor Day Weekend 2011, I started...

http://www.tmcom.com/~tsm1/gallery2/d/127899-1/IMG_0136.JPG
http://www.tmcom.com/~tsm1/gallery2/d/127902-1/IMG_0137.JPG
http://www.tmcom.com/~tsm1/gallery2/d/127908-2/IMG_0139.JPG
http://www.tmcom.com/~tsm1/gallery2/d/127917-2/IMG_0142.JPG
http://www.tmcom.com/~tsm1/gallery2/d/127914-2/IMG_0141.JPG

Here is some of the auxiliary trans cooling in the back.
http://www.tmcom.com/~tsm1/gallery2/d/128013-1/IMG_0175.JPG
Taurus fan clearance up front.
http://www.tmcom.com/~tsm1/gallery2/d/128001-1/IMG_0171.JPG

My wonderful wiring job - the second or third attempt..
http://www.tmcom.com/~tsm1/gallery2/d/128010-1/IMG_0174.JPG
Rear shock mount got bent a little - so did the shock shaft.
http://www.tmcom.com/~tsm1/gallery2/d/128067-1/IMG_0192.JPG

body mount.
http://www.tmcom.com/~tsm1/gallery2/d/128082-2/IMG_0197.JPG

If you never had a chance to ride with me, this is what the passenger seat view was like.
http://www.tmcom.com/~tsm1/gallery2/d/128094-4/IMG_0201.JPG
http://www.tmcom.com/~tsm1/gallery2/d/128100-1/IMG_0203.JPG

This ladder bar worked out great.
http://www.tmcom.com/~tsm1/gallery2/d/128118-1/IMG_0209.JPG
This body mount? Not in the best shape.
http://www.tmcom.com/~tsm1/gallery2/d/128151-1/IMG_0220.JPG
..but better than the driver's version.
http://www.tmcom.com/~tsm1/gallery2/d/128148-4/IMG_0219.JPG

Years ago, I angled the rear shocks inboard to get more room. Here is the old mount.
http://www.tmcom.com/~tsm1/gallery2/d/128145-1/IMG_0218.JPG
My seat mount was not stout enough.
http://www.tmcom.com/~tsm1/gallery2/d/128160-2/IMG_0223.JPG
The fiberglass quarter panel came off easily enough.
http://www.tmcom.com/~tsm1/gallery2/d/128194-1/2011-09-04_19-55-35_977.jpg
http://www.tmcom.com/~tsm1/gallery2/d/128197-2/2011-09-04_19-56-05_851.jpg
I found the rear R&P was broken. The cross-shaft is sheared.
http://www.tmcom.com/~tsm1/gallery2/d/128206-4/2011-09-05_14-37-27_236.jpg
http://www.tmcom.com/~tsm1/gallery2/d/128209-4/2011-09-05_14-38-03_424.jpg

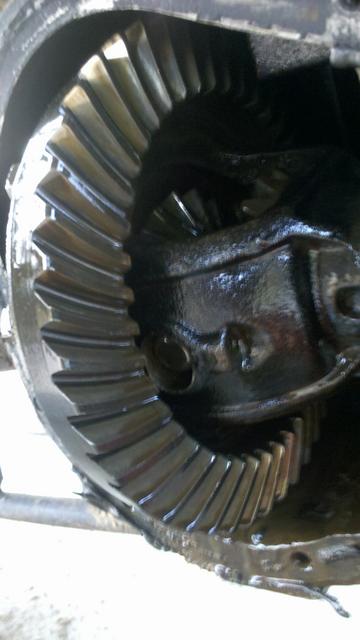

..and wallowing out the carrier.
http://www.tmcom.com/~tsm1/gallery2/d/128215-4/2011-09-05_17-44-56_513.jpg

Rear brakes were toast.
http://www.tmcom.com/~tsm1/gallery2/d/128212-4/2011-09-05_17-44-34_894.jpg

The ladder bar and driveshafts came out OK. The rear is a stock Scout II rear driveshaft, though perhaps a little bent after all of these years.
http://www.tmcom.com/~tsm1/gallery2/d/128218-2/2011-09-05_18-31-49_344.jpg
http://www.tmcom.com/~tsm1/gallery2/d/128221-2/2011-09-05_18-31-55_245.jpg

Engine bar is fine, but the two shock mounts are tweaked since the bar "sprung" a bit when I removed the bolts.
http://www.tmcom.com/~tsm1/gallery2/d/128224-1/2011-09-05_18-59-14_275.jpg

Shock mounts were an old design from Curt Cleavenger that didn't require any tube bending.
